"Battery"
Preliminary Patent Application
(Return to Index Page)
August 27, 1978
Sunnyvale, California
Copyrighted © by The Townsend Brown family. All rights reserved.
Description:
This invention relates, in general, to a new and unique method for generating electricity. In
particular, it relates to a type of battery which, unlike other batteries, is not powered by
chemical action. While it functions as an electromotance, it is not its own (self-contained)
source of energy. While the physical principles underlying this invention are not clearly
understood, it is presently believed, supported by other evidence, that the energy source is
extraterrestrial, coming to the Earth from cosmic space in the form of penetrating gravitational
radiation. It is believed that this grovitic radiation coming from cosmological sources is of
ultra-high frequency, extending possibly into the iingstrom range.
Strictly speaking, while this invention may be classified for patent purposes as a new form of
"battery" it could more accurately be termed an "energy converter" or a gravitovoltaic device.
From the practical operational standpoint, however, it is appropriately referred to as a
battery.
The active ingredient of the subject battery is a massive high-K dielectric material, such as
heavy metal oxides or carbides. For the sake of clarity in this patent application, tungsten
carbide (sp. gr. 17.0) is selected as one of the best, if not the best, active ingredient to
use. Heavy metal oxides sucli as lead monoxide (litharge), osmium or barium compounds or the
like may be used with similar results. The electrical output is conducted from the said active
(receptor) mass by suitably placed electrodes. This output is observed in the form of a DC
self-potential.
Specifications:

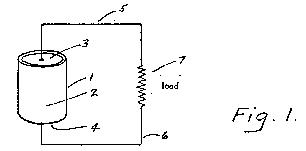

Fig. 1 is a perspective of i-he said battery, showing insulated enclosure I containing a volume
of heavy powder 2 such as tungsten carbide with a binding agent, together with electrodes 3 and
4 attached thereto and leads 5 and 6 to conduct the generated current to external load 7.
Fig. 2 is a circuit diagram of Fig. 1 showing additionally the means to polarize the battery
initially. Polarization voltage is supplied by high voltage source S. Voltage is supplied only
while the mixture is cooling and/or hardening. This circuit is then disconnected.
It is necessary, initially, to polarize. the battery in order, to orient the dipole molecules
and clign the particles of powder so that output EMF is additive. This alignment of dipples or
polarization, induced while the aclive material is fluid, is retained and persists after the
active material cools or hardens.
The battery is constructed in the following steps:
1 . Tungsten carbide powder is mixed with molten carnauba wax or other suitable binder and the
heavy mixture poured into insulated container I and allowed to cool or harden.
2. During cooling, a high voltage is placed across electrodes 3 and 4 as shown in Fig. 2, so as
to electrically polarize the mixture. This polarization is necessary so as to permit subsequent
energy (gravitovoltaic) conversion from the incident radiation.
3. Following polarization, cooling and solidification, the battery is ready to operate and will
continue thereafter to generate self-potential with integrated power far in excess of the power
required for polarization. It is observed in tests extending over many years that, whereas the
output undergoes diurnal and secular variations, it does not permanently diminish or disappear.
In other words, the evidence to date is that this form of battery has no fixed life, as other
(chemical) batteries, but continues to generate electricity indefinitely.
While I have in the foregoing specifications referred to tungsten carbide and camauba wax as
preferred ingredients, it is to be clearly understood that other massive high-K dielectrics and
plastic (or other) binders may be utilized without departing from the spirit of the invention
as intended to be covered in the hereto appended claims.
Claims:
1 . Method of generating electricity consisting in utilizing a mass of tungsten carbide powder,
binding said powder in a suitable semi-conductor, polarizing said mass by applying high voltage
thereto while said binder is hardening and utilizing collector electrodes and leads attached
thereto to conduct away the generated electricity.
2. Method of generating electricity comprising mixing powdered tungsten carbide with molten
carnauba wax, allowing said mixture to harden within an intense electrical field, removing
said field and utilizing the perpetual self-potential of said mixture to energize an external
load.
T. Townsend Brown
Inventor
Sunnyvale, California
April 28, 1976
